# Review of Related Literature and Technology Application

SSO technology has been a major project to a lot of companies and organizations worldwide. The only difference from each of them is the framework, and authentication and authorization component. Some examples that can help the proponents enhance their knowledge on the different ways to use/develop SSO are:

• # SAML SINGLE SIGN-ON (SSO) SERVICE FOR GOOGLE APPS

SAML stands for Security Assertion Markup Language. In essence, it is an XML-based framework for asking questions and making assertions about the authentication and authorization of users between security domains. Google Apps offers a SAML-based Single Sign-on service that provides partner companies with full control over the authorization and authentication of hosted user accounts that can access web-based applications such as Gmail or Google Calendar. [Loveland 2002]

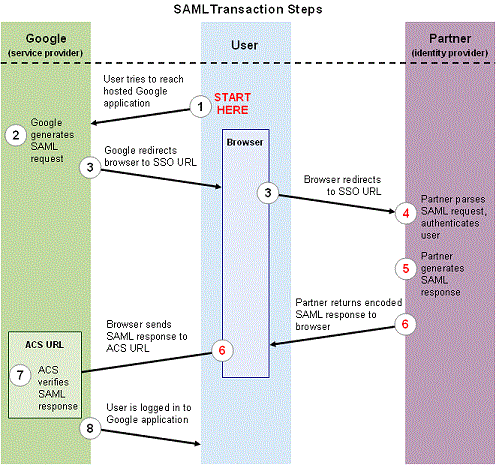

Google’s operational framework shows how it uses SAML in its transactions, which are The user attempts to reach a Google app, Google then generates a SAML authentication request, Google redirects the user’s browser, the partner decodes the SAML request and extracts the URL for both Google’s ACS (Assertion Consumer Service) and the user’s destination URL, the partner generates a SAML response that contains the authenticated user’s username, the partner then encodes the SAML response and the RelayState parameter and returns the information to the user’s browser, Google’s ACS verifies the SAML response using the partner’s public key, and finally the user has been redirected to the destination URL and logged in to Google Apps

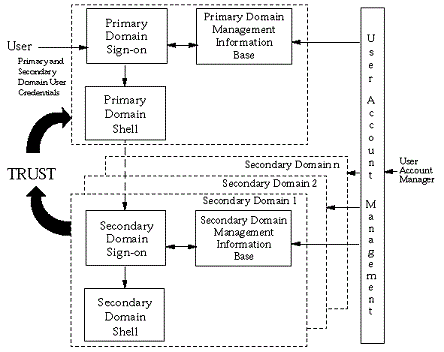

• # LEGACY APPROACH TO USER SIGN-ON TO MULTIPLE SYSTEMS

Historically, a distributed system has been assembled from components that act as independent security domains. These components comprise individual platforms with associated operating system and applications. In the single sign-on approach, the system is required to collect from the user, as part of the primary sign-on, all the identification and user credential information necessary to support the authentication of the user to each of the secondary domains that the user may potentially require to interact with. The information supplied by the user is then used by Single Sign-On Services within the primary domain to support the authentication of the end user to each of the secondary domains with which the user actually requests to interact. [Maurizio 2008]

The information supplied by the end-user as part of the Primary Domain Sign-On procedure may be used in support of secondary domain sign-on in several ways:

• Directly, the information supplied by the user is passed to a secondary domain as part of a secondary sign-on.

• Indirectly, the information supplied by the user is used to retrieve other user identification and user credential information stored within the single sign-on management information base. The retrieved information is then used as the basis for a secondary domain sign-on operation.

• Immediately, to establish a session with a secondary domain as part of the initial session establishment. This implies that application clients are automatically invoked and communications established at the time of the primary sign-on operation.

• Temporarily stored or cached and used at the time a request for the secondary domain services is made by the end-user.



• # SINGLE SIGN ON THROUGH PASSWORD SYNCHRONIZATION

This paper is a case study on a project to provide an SSO solution to web based applications that use the mainframe as the data store. Methods that will provide Single Sign On are Kerberos Protocol and Password Synchronization. This paper should provide guidance to other security professionals faced with providing a Single Sign On solution. The Single Sign On solution covered is based on password synchronization. The author of the paper first define the requirements that she would need, next researched on password synchronization tools and on vendors for SSO products after which told the vendors that their company had an interest for the products that they were selling and prompted for a demo and after weighing each product selected a particular needed software/hardware, after which comes customization and testing and lastly, implementation. The data of each test were documented properly to identify errors and flaws.

• # SINGLE SIGN-ON USING KERBEROS IN JAVA

Kerberos V5 is a trusted third party network authentication protocol designed to provide strong authentication using secret key cryptography. When using Kerberos V5, the user's password is never sent across the network, not even in encrypted form, except during Kerberos V5 administration.

There are mainly two standard security mechanisms that IETF has defined, Kerberos V5 and the Simple Public Key Mechanism (SPKM). The Generic Security Service API is designed such that an implementation may support multiple mechanisms simultaneously, giving the application the ability to choose one at runtime.

• # SHIBBOLETH SSO FOR SMALL BUSINESS

A team of programmers finished making an SSO project in eight weeks by using Shibboleth. The team used Caveat, which they have said to be “a pretty basic configuration, only one IdP within a single enterprise,” Shibboleth has been designed to scale out far beyond their implementation (to support SSO across academic institutions). Shibboleth consists of two main components – an identity provider (IdP) and SAML v2. The IdP and SP (Service Provider) needs to have knowledge of each other – it is required for the SP to redirect the user to the IdP for authentication, establish crypto to facilitate message signing and encryption between the two servers and to define the attributes that can be released from the IdP to specific SP. The team has successfully invoke Shibboleth SP to talk to their IdP in Canberra after writing the required SP and IdP metadata.

The aforementioned syntaxes show different protocols on how they deal with the validation of the user’s login credentials and on how they retrieve credited websites that can be logged in by the specified applications. Comparing some of these syntaxes, programs, protocols, or applications, with the proposed project can help enlighten the proponents on the lacking features or the efficiency of use for the SSO application. [Upadhya et al. ND]
